ENGINE LOCATION INDEX [PYUL]SM3329719
ENGINE LOCATION INDEX [PYUL]

id01101a802100

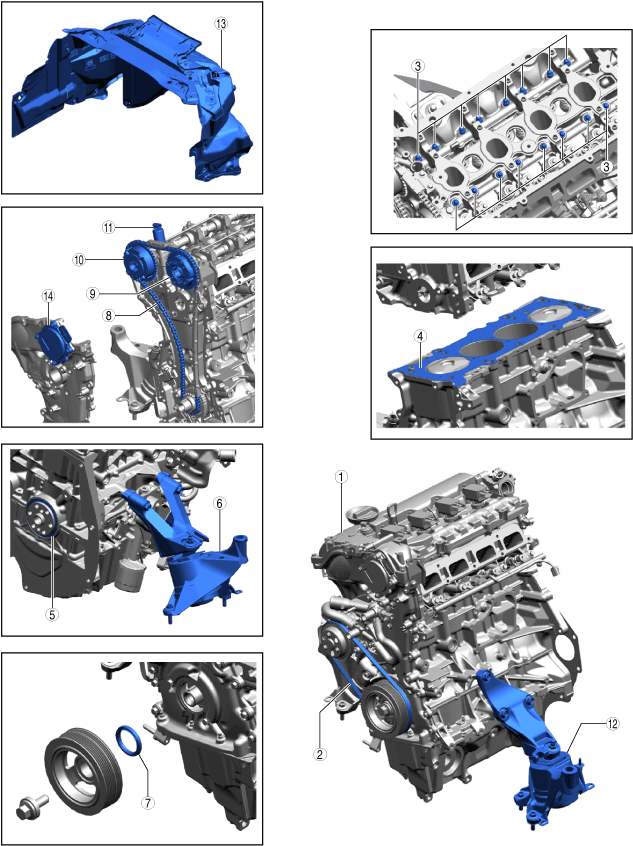

Engine Compartment
ac6wzw00000694

1
Engine
(See ENGINE TUNE-UP [PYUL].)
(See COMPRESSION INSPECTION [PYUL].)
(See ENGINE REMOVAL/INSTALLATION [PYUL].)
(See ENGINE DISASSEMBLY/ASSEMBLY [PYUL].)
Short engine
(See SHORT ENGINE REMOVAL/INSTALLATION [PYUL].)
Cylinder head cover
(See CYLINDER HEAD COVER REMOVAL/INSTALLATION [PYUL].)
Cylinder head
(See CYLINDER HEAD REMOVAL/INSTALLATION [PYUL].)
2
Water pump drive belt
(See DRIVE BELT REMOVAL/INSTALLATION [PYUL].)
(See DRIVE BELT INSPECTION [PYUL].)
3
HLA
(See HYDRAULIC LASH ADJUSTER (HLA) REMOVAL/INSTALLATION [PYUL].)
(See HYDRAULIC LASH ADJUSTER (HLA) INSPECTION [PYUL].)
4
Cylinder head gasket
(See CYLINDER HEAD GASKET REPLACEMENT [PYUL].)
5
Rear oil seal
(See REAR OIL SEAL REPLACEMENT [PYUL].)
6
Engine mount (RH)
(See ENGINE MOUNT REMOVAL/INSTALLATION [PYUL].)
7
Front oil seal
(See FRONT OIL SEAL REPLACEMENT [PYUL].)
8
Timing chain
(See TIMING CHAIN REMOVAL/INSTALLATION [PYUL].)
9
Electric variable valve timing actuator
(See ELECTRIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [PYUL].)
(See ELECTRIC VARIABLE VALVE TIMING ACTUATOR INSPECTION [PYUL].)
10
Hydraulic variable valve timing actuator
(See HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [PYUL].)
(See HYDRAULIC VARIABLE VALVE TIMING ACTUATOR INSPECTION [PYUL].)
11
Oil control valve (OCV)
(See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [PYUL].)
(See OIL CONTROL VALVE (OCV) INSPECTION [PYUL].)
12
Engine mount (LH)
(See ENGINE MOUNT REMOVAL/INSTALLATION [PYUL].)
13
Capsule construction
(See CAPSULE CONSTRUCTION REMOVAL/INSTALLATION [PYUL].)
14
Electric variable valve timing motor/driver
(See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER REMOVAL/INSTALLATION [PYUL].)
(See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER INSPECTION [PYUL].)
—
Capsule cover
(See CAPSULE COVER REMOVAL/INSTALLATION [PYUL].)
(See CAPSULE COVER OPEN/CLOSE [PYUL].)
