COOLING SYSTEM LOCATION INDEX [PYUL]SM3329825
COOLING SYSTEM LOCATION INDEX [PYUL]

id01121a800100

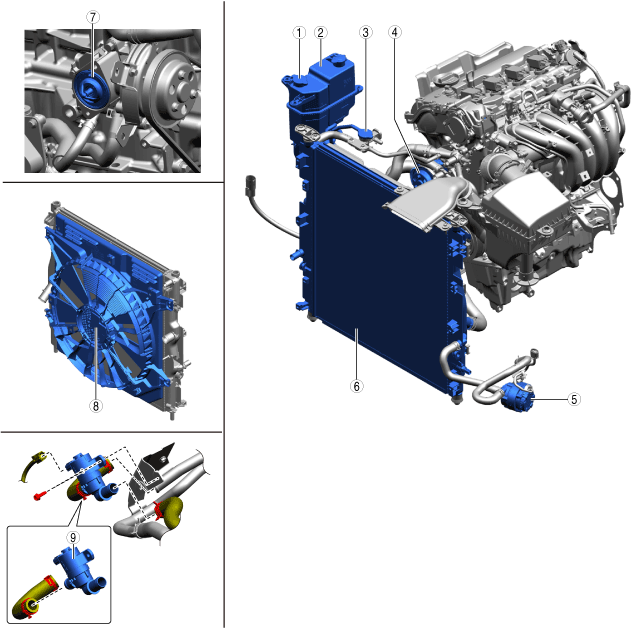

Engine Compartment
a90zzw00000326

1
Cooling system cap (sub)
2
Coolant reserve tank
(See COOLANT RESERVE TANK REMOVAL/INSTALLATION [PYUL].)
(See COOLING SYSTEM SERVICE WARNINGS [PYUL].)
(See ENGINE COOLANT LEVEL INSPECTION [PYUL].)
3
Cooling system cap (main)
(See COOLING SYSTEM CAP INSPECTION [PYUL].)
4
Water pump
(See WATER PUMP REMOVAL/INSTALLATION [PYUL].)
5
Electric water pump No.1
(See ELECTRIC WATER PUMP No.1 REMOVAL/INSTALLATION [PYUL].)
(See ELECTRIC WATER PUMP No.1 INSPECTION [PYUL (e-SKYACTIV PHEV)].)
6
Radiator
(See RADIATOR REMOVAL/INSTALLATION [PYUL].)
(See ENGINE COOLANT REPLACEMENT [PYUL].)
(See ENGINE COOLANT CONCENTRATION INSPECTION [PYUL].)
(See ENGINE COOLANT LEAKAGE INSPECTION [PYUL].)
7
Thermostat
(See THERMOSTAT REMOVAL/INSTALLATION [PYUL].)
(See THERMOSTAT INSPECTION [PYUL].)
8
Cooling fan motor
(See COOLING FAN MOTOR REMOVAL/INSTALLATION [PYUL].)
(See COOLING FAN MOTOR INSPECTION [PYUL].)
(See FAN CONTROL MODULE INSPECTION [PYUL].)
9
Coolant switching valve
(See COOLANT SWITCHING VALVE (CSV) REMOVAL/INSTALLATION [PYUL].)
(See COOLANT SWITCHING VALVE (CSV) INSPECTION [PYUL].)
