Note:

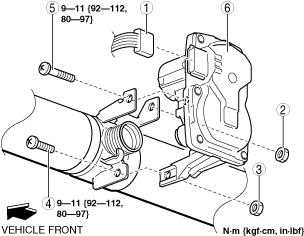

– The exhaust shutter valve cannot be removed because it is built into the middle pipe.
– o determine the malfunctioning part, proceed with the diagnostics from “Function Inspection Using M-MDS”.

1. Connect the exhaust shutter valve connector.
2. Connect the negative battery terminal.
3. Connect the M-MDS to the DLC-2.
4. Switch the ignition ON (engine off).
